ESAB Welding Electrode OK 63.2 E316L-16 3.2x350mm 1/2 VP 5.1Kg Box,1.7kg Pkt Made In Sweden
ESAB Welding Electrode OK 63.2 E316L-16 3.2x350mm 1/2 VP 5.1Kg Box,1.7kg Pkt Made In Sweden
ESAB OK 63.2 Welding Electrode (Part No. 63203230T0), AWS E316L-16, 3.2 × 350 mm – Premium stainless steel SMAW electrode for welding 316 and 316L stainless steels, offering excellent corrosion resistance, smooth arc stability, and superior weld quality. Supplied in 5.1 kg vacuum-packed box (3 × 1.7 kg packets). Made in Sweden. Rutile coated electrode for welding 18Cr12Ni3Mo -type steels. Also suitable for welding stabilized steels of similar composition. The electrode is especially designed for welding of thin walled pipes. Diameters 1.6 - 2.5mm. It can be used in all positions including vertical down.
Product Price
You can directly request a quote with this product by submitting the form, and our team will get back to you with more details.
ESAB Welding Electrode OK 63.2 E316L-16 3.2x350mm 1/2 VP 5.1Kg Box,1.7kg Pkt Made In Sweden
The ESAB OK 63.2 Welding Electrode (Part No. 63203230T0) is a premium AWS A5.4 E316L-16 rutile-coated stainless steel electrode designed for Shielded Metal Arc Welding (SMAW) of AISI 316, 316L, 318, and similar molybdenum-alloyed austenitic stainless steels. Manufactured in Sweden, this electrode provides excellent corrosion resistance, superior weld quality, and outstanding mechanical properties for demanding industrial applications.
With a 3.2 mm diameter and 350 mm length, the OK 63.2 electrode is ideal for medium to heavy-duty fabrication work. The low-carbon (L) weld deposit minimizes carbide precipitation during welding, significantly reducing the risk of intergranular corrosion while maintaining excellent resistance to pitting, crevice corrosion, and chemical attack.
The rutile coating ensures easy arc ignition and re-ignition, smooth arc stability, low spatter, and effortless slag removal, producing clean welds with an attractive bead appearance. Suitable for all welding positions, the electrode performs exceptionally well in fabrication shops, petrochemical plants, food and beverage processing, pharmaceutical industries, marine fabrication, pressure vessels, heat exchangers, piping systems, and offshore applications.

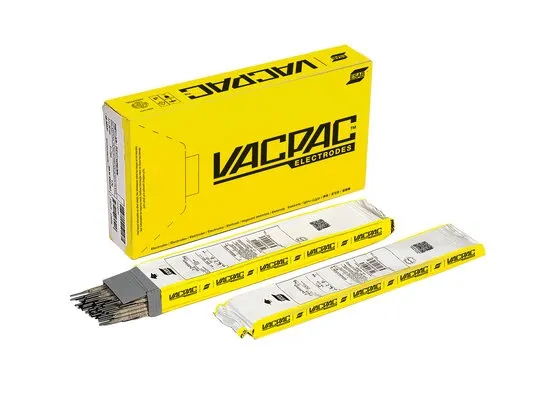

The electrodes are supplied in a 5.1 kg vacuum-packed box containing three 1.7 kg vacuum-sealed packets, ensuring excellent moisture protection, longer shelf life, and consistent welding performance.
Key Features
- Part Number: 63203230T0
- AWS Classification: E316L-16
- Premium stainless steel SMAW electrode
- Ideal for welding 316 and 316L stainless steels
- Low-carbon weld deposit for enhanced corrosion resistance
- Excellent resistance to pitting and chemical corrosion
- Smooth, stable arc with low spatter
- Easy slag removal and excellent weld bead appearance
- Suitable for all-position welding
- Vacuum-packed for moisture protection and longer shelf life
- Made in Sweden
Applications
- Stainless steel fabrication
- Chemical and petrochemical plants
- Food and beverage processing equipment
- Pharmaceutical industry
- Marine and offshore fabrication
- Pressure vessels
- Heat exchangers
- Stainless steel piping systems
- Power generation
- Industrial maintenance and repair
Specifications
| Specification | Details |
|---|---|
| Brand | ESAB |
| Part Number | 63203230T0 |
| Product Name | OK 63.2 Welding Electrode |
| AWS Classification | E316L-16 |
| Standard | AWS A5.4 / ASME SFA5.4 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 3.2 mm |
| Length | 350 mm |
| Packaging | 5.1 kg vacuum-packed box (3 × 1.7 kg vacuum-packed packets) |
| Country of Origin | Made in Sweden |
| Applications | Stainless Steel Fabrication, Chemical Processing, Marine, Food Processing, Pressure Vessels, Industrial Maintenance |
ESAB Welding Electrode OK 63.2 E316L-16 3.2x350mm 1/2 VP 5.1Kg Box,1.7kg Pkt Made In Sweden
The ESAB OK 63.2 Welding Electrode (Part No. 63203230T0) is a premium AWS A5.4 E316L-16 rutile-coated stainless steel electrode designed for Shielded Metal Arc Welding (SMAW) of AISI 316, 316L, 318, and similar molybdenum-alloyed austenitic stainless steels. Manufactured in Sweden, this electrode provides excellent corrosion resistance, superior weld quality, and outstanding mechanical properties for demanding industrial applications.
With a 3.2 mm diameter and 350 mm length, the OK 63.2 electrode is ideal for medium to heavy-duty fabrication work. The low-carbon (L) weld deposit minimizes carbide precipitation during welding, significantly reducing the risk of intergranular corrosion while maintaining excellent resistance to pitting, crevice corrosion, and chemical attack.
The rutile coating ensures easy arc ignition and re-ignition, smooth arc stability, low spatter, and effortless slag removal, producing clean welds with an attractive bead appearance. Suitable for all welding positions, the electrode performs exceptionally well in fabrication shops, petrochemical plants, food and beverage processing, pharmaceutical industries, marine fabrication, pressure vessels, heat exchangers, piping systems, and offshore applications.
The electrodes are supplied in a 5.1 kg vacuum-packed box containing three 1.7 kg vacuum-sealed packets, ensuring excellent moisture protection, longer shelf life, and consistent welding performance.
Key Features
- Part Number: 63203230T0
- AWS Classification: E316L-16
- Premium stainless steel SMAW electrode
- Ideal for welding 316 and 316L stainless steels
- Low-carbon weld deposit for enhanced corrosion resistance
- Excellent resistance to pitting and chemical corrosion
- Smooth, stable arc with low spatter
- Easy slag removal and excellent weld bead appearance
- Suitable for all-position welding
- Vacuum-packed for moisture protection and longer shelf life
- Made in Sweden
Applications
- Stainless steel fabrication
- Chemical and petrochemical plants
- Food and beverage processing equipment
- Pharmaceutical industry
- Marine and offshore fabrication
- Pressure vessels
- Heat exchangers
- Stainless steel piping systems
- Power generation
- Industrial maintenance and repair
Specifications
| Specification | Details |
|---|---|
| Brand | ESAB |
| Part Number | 63203230T0 |
| Product Name | OK 63.2 Welding Electrode |
| AWS Classification | E316L-16 |
| Standard | AWS A5.4 / ASME SFA5.4 |
| Welding Process | SMAW (Shielded Metal Arc Welding) |
| Diameter | 3.2 mm |
| Length | 350 mm |
| Packaging | 5.1 kg vacuum-packed box (3 × 1.7 kg vacuum-packed packets) |
| Country of Origin | Made in Sweden |
| Applications | Stainless Steel Fabrication, Chemical Processing, Marine, Food Processing, Pressure Vessels, Industrial Maintenance |
